Home /Products/DC Geared Motor/Totally Enclosed Brushless Dc Motor 48V 72V 5KW 5000W Bldc Electric DC Ebike Motor Manufacturers

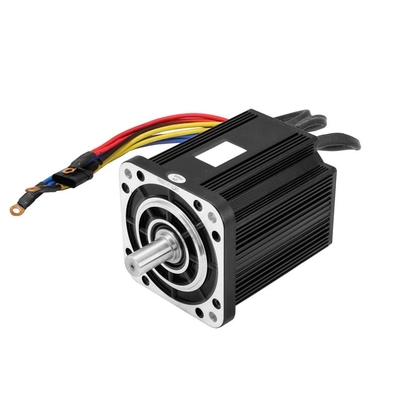

Totally Enclosed Brushless Dc Motor 48V 72V 5KW 5000W Bldc Electric DC Ebike Motor Manufacturers

1 Piece
MOQ
$1,500.00(1 - 49 Pieces) $1,200.00(50 - 99 Pieces) $1,100.00(>=100 Pieces)
Price
Totally Enclosed Brushless Dc Motor 48V 72V 5KW 5000W Bldc Electric DC Ebike Motor Manufacturers
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Model Number: D180BLD5000-48A-30S
Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Automatically Machine
Type: BLDC Motor
Torque: 16N.M
Construction: Permanent Magnet
Commutation: Brushless
Protect Feature: Totally Enclosed
Speed(RPM): 3000RPM
Continuous Current(A): 130A
Efficiency: IE 2
Direction Of Rotation: CW/CCW
Motor Dimension: 180mm
Rated Voltage(V): 48V
Rated Power: 5kw
Certificates: CE, ROSH, LVD, EMC
Humity: <90%
Sample Delivery Time: 20 Days
Bulk Delivery Time: 30days
Protection Rank: IP65
Customized: Welcome
Basic Infomation
Certification: CE, ROSH, LVD, EMC
Model Number: D180BLD5000-48A-30S
Payment & Shipping Terms
Packaging Details: According to the size of the motor for safe packing. 1 pcs electric 48v 72v 5kw 5000w bldc brushless dc ebike motor manufacturers packed inside of 1carton
Supply Ability: 10000 Set/Sets per Month
Product Description
Kindly remind:
As different customers may need different motor parameter for fitting your equipment. If below motor can't fit your need, please kindly send inquiry to us with information for rated power or torque,rated speed, and rated voltage for our new size drawing making for you. Thanks a lot!
Dimensions (Unit: mm )
Mounting screws are included with gearhead，please ontact us for motor size -L length based on different specifictaion.
Model
D180BLD5000-48A-30S
D180BLD5000-72A-30S
Power W
5000w
5000w
Voltage V
48V
72V
Rated current A
130.22A
86.82A
Rated speed (rpm/min)
3000
3000
No-load speed(rpm/min)
3300
3300
Rated torque N.m
16
16
Motor Weight(KG)
26
26
Poles
8 poles
8 poles
protection rank
IP65
IP65
Shaft diamter(mm)
35mm
35mm
L length(mm)
273mm
273mm
Warm remind
Contact us now for L length based on different power, speed and rated torque.
Customizable accessories:motor length, shaft, voltage,power,rated speed and so on.
Feature:
A. High power range from 5W to 20KW for bldc brushless dc motor&controller
B. Rich stock and fast shipping time in 10-20 working days
C. Easy for speed & direction adjustment
D. 16mm to 220mm size range with low noisy
E. Strong stability for driver/controller
F. Lifetime above continuous 10000 hours
G. IP65 protection rank is available for us
H. Above 90% enery efficiency motor is available
I. 3D file is available if customers needed
J. Permanent magnet brushless dc motor
K.High-performance and stable matching driver and controller

Notice for Usage:
1).Please don't use motor out of the range of nameplate of gear box and motor and the specification of product
catalogue, avoiding getting an electric shock, hurting or damaging the device.
2).Please do not put your fingers and things into
the opening part of gear or motor ,in order to prevent getting and electric shock,hurting,catching a fire of damaging device etc.
3).Please do not use the Injured gear head of motor, in prder to orevent hurting,catching a fire etc.
4).Please do not put off the
nameolate.
5) If the products are reformed by the customers personally, it no longer belongs to the guarantee scope, and our
company doesn’t undertake any responsibility.
6) When you move it, if it shed off or tilt to one side, it is very dangerous,
please pay more attention.
7) Please must not put the flammable thing near the gear head and motor, in order to prevent catching a
fire.
FLIER TECH is a professional manufacturer was founded in 2009 in Shenzhen, Factory in PanYu, Guangzhou, who boats 12 years of experience in the motor and controller industry.

Our main products are Brushless DC Motor, Brushless Controller, DC Servo Motor and Controller, Planetary Gear Motors, Worm Gear Motors, Brush DC Motor and AC Motor,BMS... They are widely used in AGV, RGV, Robots, Lifting Equipment, Cleaning Mmachines, Medical Equipment, Cafe Machinery, Packing Machinery, Amusement Game Machines, Automobiles, Industrial Equipment Etc. With a plant area of 4000 square meters, we have the independent design and development capabilities and strong technical force, with an annual output of more than 1 million units.

OEM/DM orders are welcome, FLIER motors had exported to 20 countries until now, including the US, Germany, Italy, UK, Poland,Australia ,Saudi Abrabia, Switzerland, Sweden Japan etc.

We are looking forward to establishing a long-term friendly business relationship with you.
