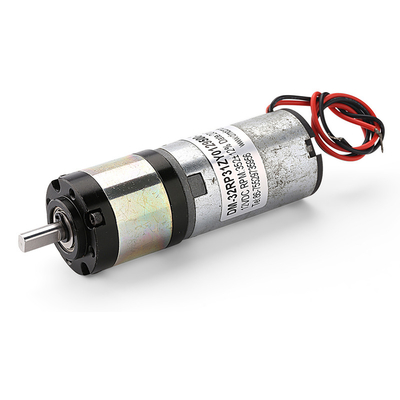

DM-32RP31ZY 32mm planetary gear dc motor
1.Main voltage : 6VDC,12VDC, 24VDC
2.Typical applications: Smart Instrument, Digital product, Automatic door-lock, Medical equipment, Security monitoring, Smart home applicances, Robots…
3.Gearbox size: 32mmφ*L
4. Torque: 5-50kgf.cm
5. Direction: CW, CCW
6. Voltage, speed, and shaft can be customized based
7. Encoder 12PPR available
Appearance size:
Gearbox Data :
|
Number of stages |
1 |
2 |
3 |
4 |
|
Reduction ratio |
3.7,5.2 |
14,19,27 |
51,71,100,139 |
189,264,369,515,721 |
|
Gearbox length “L”mm |
25.5 |
33.5 |
41.5 |
49.5 |
|
Breaking torque(kgf.cm) |
6 |
10 |
20 |
40 |
|
Gearbox efficiency |
90% |
81% |
73% |
65% |
Driving Motor Data :
|
Motor model |
Rated Volt. |
No load |
Load |
Stall |
|||||
|
Current |
Speed |
Current |
Speed |
Torque |
Output power |
Torque |
Current |
||
|
V |
mA |
r/min |
mA |
r/min |
gf.cm |
W |
gf.cm |
mA |
|
|
DM-31ZY-012-3000 |
12 |
≤100 |
3000 |
≤400 |
2200 |
90 |
2.0 |
360 |
1600 |
|
DM-31ZY-012-4500 |
12 |
≤150 |
4500 |
≤700 |
3300 |
130 |
4.4 |
520 |
2700 |
|
DM-31ZY-012-6000 |
12 |
≤220 |
6000 |
≤1200 |
4500 |
180 |
8.3 |
720 |
5000 |
|
DM-31ZY-024-3000 |
24 |
≤60 |
3000 |
≤200 |
2200 |
90 |
2.0 |
360 |
800 |
|
DM-31ZY-024-4500 |
24 |
≤90 |
4500 |
≤350 |
3300 |
130 |
4.4 |
520 |
1300 |
|
DM-31ZY-024-6000 |
24 |
≤130 |
6000 |
≤650 |
4500 |
180 |
8.3 |
720 |
2600 |
Geared Motor Data :
|
Motor model |
Rated Volt. |
No load |
Load |
Stall |
|||||
|
Current |
Speed |
Current |
Speed |
Torque |
Output power |
Torque |
Current |
||
|
V |
A |
r/min |
A |
r/min |
kgf.cm |
W |
kgf.cm |
A |
|
|
DM-32RP31ZY0123000-71K |
12.0 |
0.13 |
41.2 |
0.48 |
31.0 |
6.0 |
1.92 |
24.2 |
1.54 |
|
DM-32RP31ZY0124500-71K |
12.0 |
0.17 |
63.7 |
0.72 |
51.2 |
6.6 |
3.49 |
33.8 |
2.97 |
|
DM-32RP31ZY0126000-100K |
12.0 |
0.26 |
60.0 |
0.98 |
47.9 |
9.1 |
4.48 |
45.0 |
3.83 |
|
DM-32RP31ZY0126000-189K |
12.0 |
0.27 |
31.1 |
1.04 |
23.8 |
15.5 |
3.79 |
66.3 |
3.58 |
|
DM-32RP31ZY0243000-19K |
24.0 |
0.05 |
164.5 |
0.21 |
126.2 |
1.8 |
2.31 |
7.0 |
0.73 |
|
DM-32RP31ZY0244500-100K |
24.0 |
0.11 |
46.2 |
0.39 |
35.6 |
9.8 |
3.61 |
43.0 |
1.32 |
|
DM-32RP31ZY0246000-264K |
24.0 |
0.21 |
25.7 |
0.83 |
21.1 |
37.8 |
8.18 |
210.0 |
3.66 |
|
DM-32RP31ZY0247000-19K |
24.0 |
0.14 |
369.0 |
0.67 |
301.6 |
2.8 |
8.61 |
15.2 |
3.05 |
|
DM-32RP31ZY0247000-515K |
24.0 |
0.20 |
13.2 |
0.73 |
10.2 |
56.0 |
5.89 |
249.0 |
2.59 |
|
DM-32RP31ZY02411000-100K |
24.0 |
0.16 |
116.9 |
0.86 |
97.6 |
9.8 |
9.82 |
59.0 |
4.39 |
Curve Chart :
Model: DM-32RP31ZY0243000-19K
Model: DM-32RP31ZY02411000-100K
Remark:
Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;
Gear Motor Speed=Driving motor speed/Reduction ratio
Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...
Welcome OEM or ODM projects

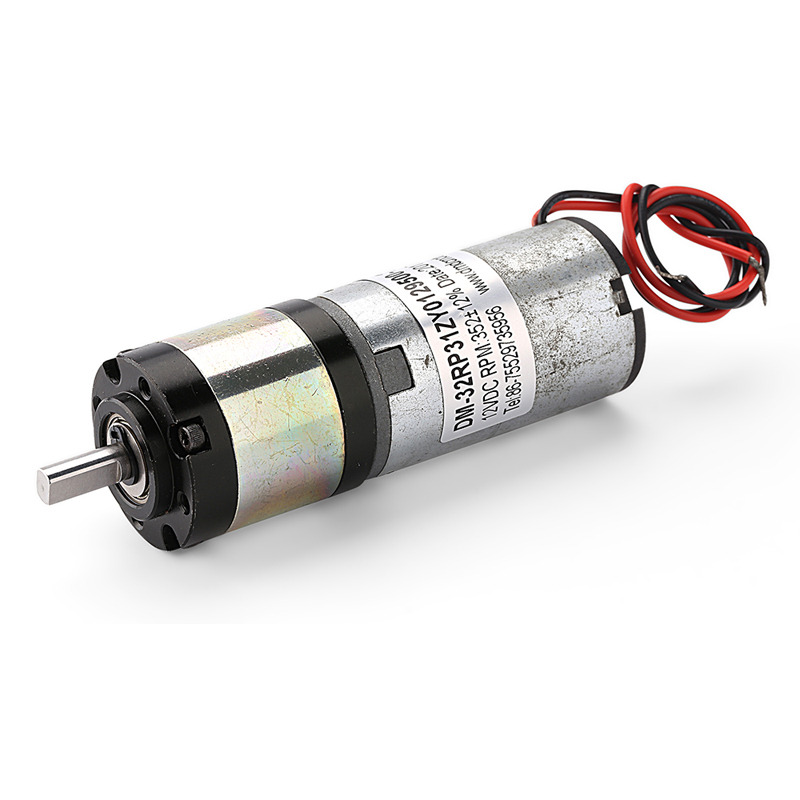

Product picture
