Home /Products/Drip Proof Motor/1.5V 3V 5V 6V drip proof metal dc 10mm micro gear motor

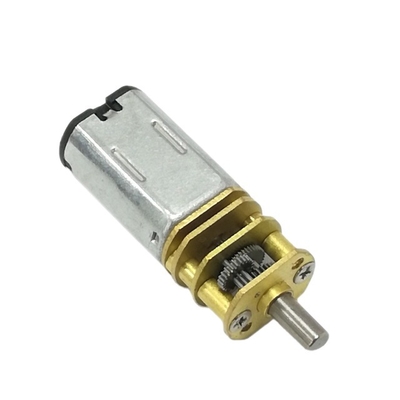

1.5V 3V 5V 6V drip proof metal dc 10mm micro gear motor

1000 Pieces
MOQ
$4.50(1000 - 2999 Pieces) $4.00(3000 - 4999 Pieces) $3.80(5000 - 9999 Pieces) $3.50(>=10000 Pieces)
Price
1.5V 3V 5V 6V drip proof metal dc 10mm micro gear motor
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3months-1year
Model Number: DGA10-M10/M20
Usage: Padlock
Type: GEAR MOTOR
Torque: ≤1000g.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Drip-proof
Speed(RPM): ≤200PM
Continuous Current(A): Customized
Efficiency: IE 1
Product Name: Metal Gear Motor
Weight: 8g
Reduction Ratio: 1/100,1/150,1/200,1/250
Rated Voltage: 1.5V-6V
Diameter: 10mm
Shaft Diameter: 2.5mm Dshaft
Keywords: 10mm Gear Motor
Motor Type: Dc Brush Gear Motor
Typical Applications: Electic Smart Lock
Certification: RoHS
Basic Infomation
Certification: RoHS
Model Number: DGA10-M10/M20
Payment & Shipping Terms
Packaging Details: 1.Export Standard Carton/Pallet 2.Customized Package 3.Donghui Brand Carton
Supply Ability: 100000 Piece/Pieces per Week
Product Description
Specification
Item
1.5V 3V 5V 6V metal micro dc 10mm gear motor
Size
D10mm*8mm*L24.5mm/21.5mm
Voltage
DC 1.5V~6V
Unload Speed
30-250rpm
Rated Torque
≤300g.cm
Max Torque
≤800g.cm
Wattage
0.2-0.8watt
Application
Robot, Lock, toys,electric power tool
Product Description
Motor's voltage,speed, ratio, torque,screw length,shaft length can be customized
Rated Products
With M 3 / M 4 screw shaft
Length:1 0 mm~45 mm
For 3D Pen Printer
Wheel size customized
Big metal gear wheel for Door lock
With Encoder for precise instrument
Right Angle for Robot and lock
Back output shaft U type for toys
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

Shenzhen Xin Dong Hui Technolgoy is professional micro motor/engine manufacturer for 10 years.

Product capacity: Brush Dc Motor:Φ6mm—Φ60mm
Brushless Dc Motor:Φ12mm-Φ42mm Coreless
Brush/Brushless DC Motor:Φ4mm—Φ45mm
Gear/Planetary Gear Dc Motor:Φ4mm—Φ60mm
Stepper Dc Motor:Φ6mm—Φ24mm
Vibration Dc Motor:Φ4mm—Φ45mm
Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
Speed Range:0.1-80,000RPM
Output Torque:0.01-500Kg.cm
Shaft Length:0.1-150mm
Gearbox Ratio:1:4---1:5000
FAQ
Question 1:What's your main products?
Answer: Diameter 4~60 mm DC Micro Motor and Gear Motor,Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor,Brushless DC motor,Spur Gear motor, Micro Motor, Vibration motor etc.

Question 2:What's the main usage of the micro dc gear motor?
Answer:Our motor widely used in Home Appliance,Office Equipment,Health-care appliance,Sanitation industry, High-class
toy,Banking System,Electronic and electrical tools,automation industry, bank equipment,payment equipment,vending machines,power door lock,electric door lock.

Question 3:Do you accept customize?
Answer:Sure,as we have a strong design team,any problems will get our technical answer.

Question 4:What kind of data do i need to provide if i want to order?
Answer:Please kindly tell us your voltage,speed,torque and overall dimension.

Question 5:What if i don't know the above data?
Answer:Please contact our salesman,tell us your requirement,we will recommend the best fit model
Please feel free contact us talk any motor question!
