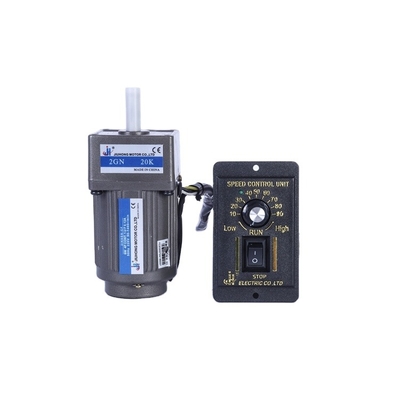

drip proof asynchronous motor gear single phase / drip proof ac motor three phase with speed controller

5 Pieces
MOQ
$45.00(5 - 49 Pieces) $43.00(50 - 99 Pieces) $41.00(>=100 Pieces)
Price
drip proof asynchronous motor gear single phase / drip proof ac motor three phase with speed controller
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 24month
Model Number: K Series-001
Type: Asynchronous Gear Reducer Motor
Frequency: 50HZ/60HZ
Phase: Single-phase
Protect Feature: Drip-proof
AC Voltage: 110W/220V/380V/440V
Efficiency: IE 2
Application: Automatic Industry
Certification: CCC, CE
Basic Infomation
Certification: CCC, CE
Model Number: K series-001
Payment & Shipping Terms
Packaging Details: 1pc/pp bag in inner carton box. outsdie package with CTN or wooden box.
Supply Ability: 1000 Piece/Pieces per Week
Product Description
Product Description
Specification
MOTOR FRAME SIZE
60 mm / 70mm / 80mm / 90mm / 104mm/120mm
MOTOR TYPE
INDUCTION MOTOR / REVERSIBLE MOTOR / TORQUE MOTOR / SPEED CONTROL MOTOR
SERIES
K SERIES
OUTPUT POWER
6W / 15W / 25W / 40W / 60W / 90W / 120 W / 140W / 180W / 250W…750W(can be customized)
OUTPUT SHAFT
8mm / 10mm / 12mm; round shaft, D-cut shaft, key way shaft (can be customized)
Voltage type
Single phase 110V 50/60Hz 4P
Single phase 220V 50/60Hz 4P
Three phase 220V 50/60Hz
Three phase 380-440V 50/60Hz 4P
Accessories
Terminal box type / with Fan / thermal protector / electromagnetic brake
Above 60 W, all assembly with fan
GEARBOX FRAME SIZE
60 mm / 70mm / 80mm / 90mm / 104mm
GEAR RATIO
MINIMUM 3:1---------------MAXIMUM 750:1



Safety cautions:

General
1, Please don’t use motor out of the range which is clarified of the nameplate of gear box and motor and the specification of the product catalogue, avoiding getting an electric shock, hurting or damaging the device. 2, Please do not put your fingers into the opening part of the gear of motor, In order to preventing an electric shock, hurting catching a fire or damaging device etc. 3, Please do not use the injured gear or motor, in order to prevent catching a fire etc. 4, Please do not put off the nameplate 5, If the products are reformed by the customers personally, it no belongs to the warranty period. And our company do not undertake any responsibility. Moving When you move it, if it shed off or tit to one side, it is very dangerous, please pay more attention. Assembly 1, Please never put the flammable thing near the gearbox and motor, for fear of a fire. 2, Please do not put the things around the motor, otherwise it can affect ventilation and cooling, even burning or catching a fire because of too hot. 3, Please do not touch the gear, the motor shaft and the key slot of the gear with naked hand, or you may be hurt. 4, The device may create the oil, such as food machine, please add an oil cup assembly part, to prevent leaking oil which may have a bad effect. Assemble to the main machine 1, Please set a safe cover above the revolving part, to prevent being hurt. 2, Before connecting to the other machine, please confirm the revolving direction, it may hurt the gear motor or destroy the device. Operation 1, Please connect with the electric power according to wire diagram and usage manual, in order to prevent getting an electric shock or catching a fire. (no terminal box, please strengthen the insulation of the connection part surely) 2, Referring to the electrical source cable and the motor wire, please do not bend, stretch, and clip tightly excessively, in order to prevent getting an electric shock. 3, The terminal box connecting to the ground must be firm, in order to prevent getting an electric shock. Please adopt the electrical source according to the nameplate, to avoid burning the motor and catching a fire. The daily check and maintain 1, When operating, do not get close to or touch the revolving parts (shaft). If something or somebody engulfs or hurts, Please turn off the electrical power switch right and handle at once. 2, Please turn off the electrical source switch when electricity stops, in order to prevent hurting the person and damaging the device 3,Please note, motor with the thermal protector, when temperature of the motor is unusual, it will turn off the electrical source automatically, when the temperature of the motor fall down to a fixed data, the motor can work automatically.(Note: when the motor is not burned-not, the motor can work automatically).

Company Profile
Zhejiang Jiuhong Motor Co., Ltd is an enterprise engaged in R & D, production and sales of AC gear motor, micro motor, speed governor and deceleration motor and water pump since 2010. The company own certificate of CE, CCC and ISO9001, has a complete and scientific quality management system, as well as professional and technical personnel, perfect processing and production equipment, ensuring the perfect after-sales service, the company always adheres to the principle of “quality first, customer first” and wins the consistent recognition of the industry with integrity, strength and product quality.
Product packaging
Our Advantages
1. High quality control: JiuHong motor have American Hass machining centre and Japanese Makino machining centre. 15 unites Hexagon of NingJiang 3610IV CNC gear hobbing machine etc. all those machines ensure our precise processing, we also established a strict quality control system, in-processing and out-going inspection system, make sure each step without mistake. 2. Product advantage: high efficiency, low noise, long life, light weight, maintenance-free, reasonable price and perfect after-sale service, are favored by te majority of new and old customers. 3. Fast dispatch: Most of the products have in stock. Quality below 1000pcs can be delivered within 5 days. 4.Small order accepted: Low MOQ accepted. Also accept OEM order.
Exhibition
FAQ
Q: Are you a factory or trading company? A: We are factory in Zhejiang province. Q: how can I get the quotation? A: Usually we will submit the quotation in 24h against receipt the definitely inquiry from you. definite inquiry: Motor type or pic of the motor. Q: How about the delivery date? A: In General, the delivery date will be in one week after receive the down payment. if PO quantity above than 2000pcs, please check us further. Q: How about the label and the logo? A: Customize label and logo is workable. We accept the OEM order.
