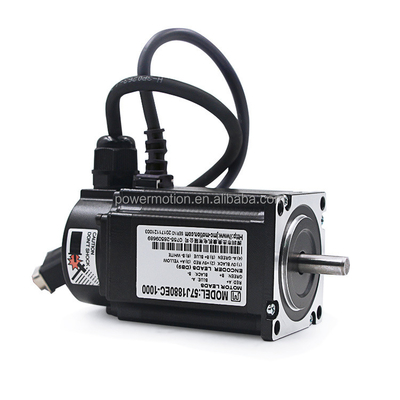

1.8 degree motor stepper nema 23 high power stepper motor 57J1880-450
Parameter
| model | step | holdingtorque | current | resis tance | inductance | detent torque | rotor(g-cm2 | insulation | lead wire | weight | length |
| angel(deg) | (N.m) | /phase(A) | /phase(ohms) | /phase(mH) | (gcm) | interia | class | numbers | (kg) | (mm) | |
| 57J1841-420 | 1.8 | 0.7 | 2 | 1.4 | 3.8 | 220 | 157 | B | 4 | 0.4 | 41 |
| 57J0955-821 | 0.9 | 0.9 | 2.1 | 1.8 | 2.5 | 400 | 280 | B | 8 | 0.6 | 54 |
| 57J1854-828 | 0.8 | 0.9 | 2.8 | 0.8 | 1.2 | 400 | 280 | B | 8 | 0.6 | 54 |
| 57J1876-828 | 1.8 | 1.3 | 2.8 | 1 | 2.1 | 700 | 460 | B | 8 | 1 | 76 |
| 57J1876-447 | 1.8 | 2 | 4.7 | 0.37 | 1.75 | 700 | 480 | B | 4 | 1.05 | 76 |
| 57J1880-450 | 1.8 | 2.2 | 5 | 0.4 | 1.8 | 700 | 520 | B | 4 | 1.15 | 80 |
| 57J1880-830 | 1.8 | 2 | 3 | 0.7 | 1.8 | 700 | 480 | B | 8 | 1.1 | 80 |
Dimension
Shenzhen Just Motion Control Electromechanics Co .,Ltd .was established with the vision of developing motion control product for the industry .Our company has accumulated several years of experience in this field , integrating research and development, manufacture and marketing. We are always striving to understand the needs of customers, and to develop further in this field.
Our main products are stepper motor drives, step motor, AC servo motor systems, DC brushes and brushless motors and drive systems, multi-axes motion controllers, and intelligent step motors .we also provide complimentary mechanical products, such as motor couplings, gearboxes, and linear motions.
