Home /Products/Stepper Motor Gearbox/Auto Product Manufacturer Customizable 2 Phase 1.3A 28N.cm NEMA 17 Micro Stepper Motor Driver Price For 3D Printer

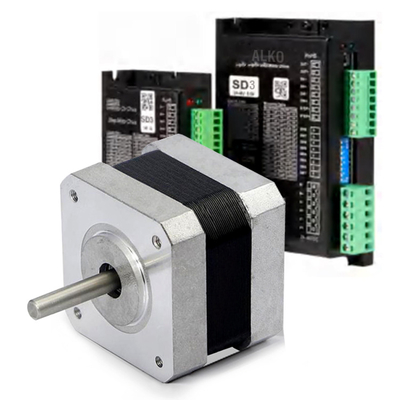

Auto Product Manufacturer Customizable 2 Phase 1.3A 28N.cm NEMA 17 Micro Stepper Motor Driver Price For 3D Printer

1.0 set
MOQ
Auto Product Manufacturer Customizable 2 Phase 1.3A 28N.cm NEMA 17 Micro Stepper Motor Driver Price For 3D Printer
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1year
Model Number: AK-42NM17H3401-3
Phase: 2
Type: Hybrid
Current / Phase: 1.3A
Application: Automatic Product
Motor Length: 34mm
Weight: 360g/set
Rated Current: 1.3A
Phase Inductance: 3.5mH
Phase Resistance: 2.4Ω
Rotor Inertia: 34g.cm2
Lead Wire: 4
Certification: ISO001 CE ISO TUV Dakks D&B
Customized Service: Support
Basic Infomation
Certification: ISO001 CE ISO TUV Dakks D&B
Model Number: AK-42NM17H3401-3
Payment & Shipping Terms
Packaging Details: Support custom packaging
Supply Ability: 10000 Piece/Pieces per Day
Product Description
Features: ① Small heat generation, high speed, stable and fast stop, no zero-speed oscillation, stable operation, low vibration noise, fast response speed, suitable for frequent start and stop occasions. ② Multi-torque optional: 10.0-80N.cm ③ 1.8° Small step angle, high precision: ④ High cost performance: simple structure and controllable cost. ⑤ The miniature body is easy to install. ⑥Applicable to all kinds of small automation equipment and instruments, such as: engraving machine, laser machine, non-standard equipment, XY axis motion platform, marking machine, cutting machine, plotter, measuring equipment, medical equipment, electronic processing equipment, CNC machine tools, feeder embroidery machine, packaging machinery and other automation requiring precise positioning equipment and instruments. ⑦ Customization Instructions: 1. The above are only representative products, The electrical parameters of the motor: such as the winding specifications, and the size and shape of the output shaft , the quantity of leads & the length， and other more parameters can be Customized according to your requirements 2. The standard output is a wire motor with a step distance of 1.8°, If the customer requires, it can provide a 6-wire motor and a step angle of 0.9 degrees. 3. The planetary gearbox can be matched with the appropriate reduction ratio according to your requirements, and the appropriate driver can be matched according to your requirements.
NEMA17(42mm)2 Phase 1.8° Hybrid Stepper Motor-Standard Specifications
Series
Model
Rated Current(A)
Phase Resistance（Ω）
Phase
Inductance(mH)
Lead Wire
(NO.)
Holding Torque
(N.cm)
Motor Length
(mm)
Rotor Inertia
(g.c㎡）
Motor Weight
(g)
Step Angle
(°）
17HS0410
0.8
3.8
4.5





     4
10
20
24
120





1.8
17HS2408
0.6
8
10
12
28
30
150
17HS3401
1.3
2.4
3.5
28
34
34
220
17HS4401
1.7
1.5
2.8
40
40
54
280
17HS8401
1.7
1.8
3.2
50
48
68
350
17HS8403
2.3
1.2
1.6
50
48
68
350
17HS9403
2.3
1.4
2.5
70
60
80
480
17HS6403
2.3
1.5
2.2
80
63
85
500
Note:We can manufacture products according to customer's requirements
Suzhou ALKO Electronics Co., Ltd. was established in 2009 and is located in the beautiful Suzhou Industrial Park.We are an industry and trade company integrating design, research and development, and sales. The company specializes in "ALKO" independent brand industrial components parts, covering plastic products, hardware accessories, various spare parts, etc. The main products are Stepper Motor , Cam Lock, Industrial Hingle, Deep groove ball bearing, Stainless Steel Pipe Clamp, Drag chain, Isolation Column, Industrial caster wheel,Cable ties, Nylon washer, Industrial Leveling Feet Pad, industrial screws, etc., aims to provide customers with a complete overall solution for industrial parts.

We have an advanced design and development team, a mature and stable management system and perfect logistics export services，We have and strictly follow GB/T 19001, ISO 9001 quality management system certification operation, always adhere to the "quality first, customer first, quality service, abide by the contract" purpose, to provide one-stop service for the world.

The company can customize products and provide free sample services according to customer needs. The products are exported to ASEAN, the Middle East, North America, Europe, Latin America, Oceania, Africa, etc. The application fields involve: automobile,communication, construction, transportation, energy, machinery In various industries, the company wholeheartedly establishes win-win cooperation with you, develops together, and creates brilliance together.
1.Q:Are you factory or trading company ?
A: We manufacture and export, mean industries(factory+trading).

2.Q: What is the MOQ?
A:Some of the goods have stock with our brand . which not have MOQ.OEM or ODM , should discuss According to the actual conditions .

3.Q; Can you do the design for us?
A: Yes. We have a professional team having rich experience in design and manufacturing.

4.Q:CanI get a sample?
A:Of course,but you may need to pay sample charge which will be returned after any order signed.

5.Q:Whatcertificates your products have?
A:Most of our products have CC,CE,ISO and RoHS certificates. If you need others such as UL,PSE and so on, we can proceed them too.

6.Q:What's your delivery time?
A:Direct orders it can be within 7-15 days!.OEM/ODM products,15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.

7.Q:Which payment method do you accept?
A:We accept T/T,L/C,D/P D/A,MoneyGram,Credit

8.Q:About after-sales service?
A:General enquiries are handle within 24 hours .For anyquestion, please contact us immediately,weare going to offer our best service to you at anytimes.
