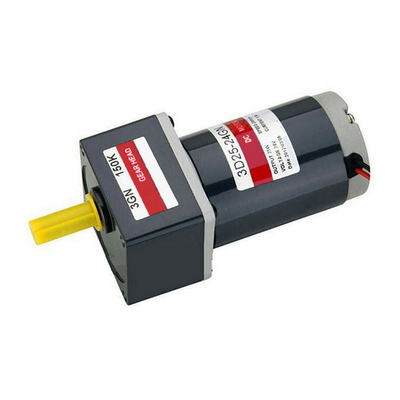

We have both DC gear motor and Brushless dc gear motor, including 5 kinds of 300 products. The watt is from 6W to 300W, voltage is from 12V DC to 220V DC. The advantages of our motors are steady work, big starting and rated torque, low noise, high efficiency and long life.
Allowance Torque
| Motor Model | Voltage | Output power | No-load Parameters | Load Parameters | Brush Life | Motor Weight | |||
| No-load Speed | No-load Current | Load Speed | Load Torque | Load Current | |||||
| V | W | r/min | A | r/min | mN.m | A | (Hours) | kg | |
| GS6D250-24 | 24 | 250 | 3400 | 3.0 MAX | 3000 | 796 | 16.0 | 2000 | 3.2 |
| GS6D250-90 | 90 | 250 | 3300 | 1.0 MAX | 3000 | 796 | 4.0 | 2000 | 3.2 |
| GS6D250-220 | 220 | 250 | 3300 | 0.8 MAX | 3000 | 796 | 2.0 | 2000 | 3.2 |
Motor Characteristics
| Type | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| GS6D250-24GU | Speed | rpm | 1000 | 833 | 600 | 500 | 400 | 333 | 240 | 200 | 167 | 120 | 100 | 83 | 60 | 50 | 40 | 33 | 30 | 25 | 20 | 17 | 15 |
| 6GU£KB | N.m | 1.93 | 2.32 | 3.22 | 3.87 | 4.83 | 5.8 | 7.25 | 8.7 | 10.4 | 13.1 | 15.7 | 18.8 | 26.1 | 31.1 | 39.2 | 40 | ||||||
Dimensional Drawing
Note:
If this model is not what you want, please freely tell us about your requirement. We will provide you with a suitable solution and price soon.
| Contact Person : | Samuel.Cao |
|---|
