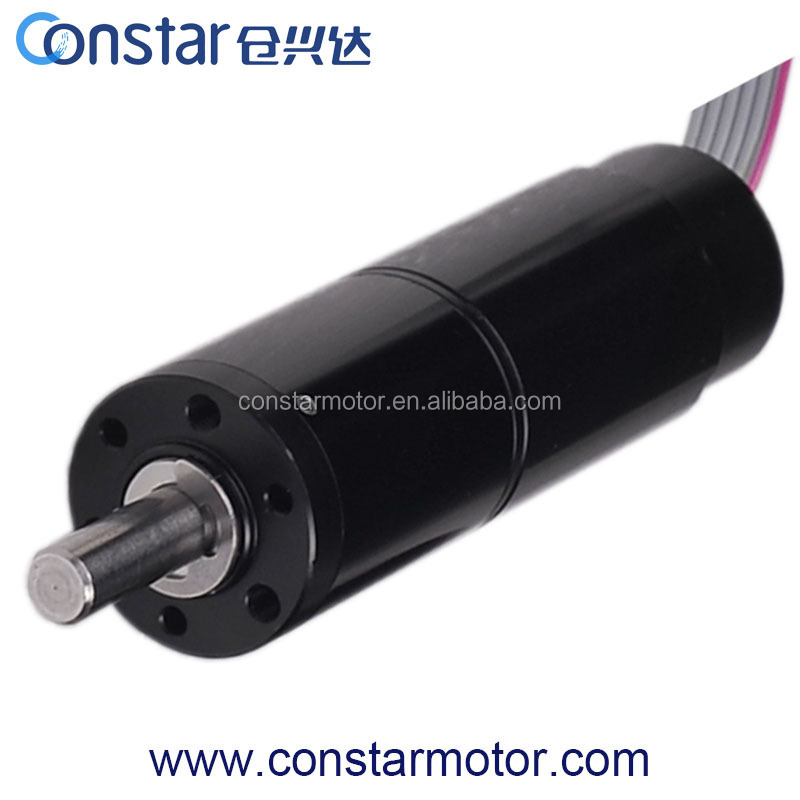

Micro 12V 24v Gear Dc Brushed Motor With Encoder
| CONSTAR MICROMOTOR | |||
| Brushless DC Motor | DC Coreless Motor | Gearmotor | Sonic Motor |
Precision control fields like medical instrument,industrial robot and so on.
Motor Characteristics
| 2233N5C-76-24.0 | ||
| 1 | Voltage | V | 24.0 |
| 2 | Terminal resistance | Ω | 19.6 |
| 3 | No-load speed | rpm | 7600 |
| 4 | No-load current | mA | 20 |
| 5 | Stall torque | mNm | 36.32 |
| 6 | Stall current | mA | 1224 |
| 7 | Nominal torque | mNm | 9.8 |
| 8 | Nominal speed | rpm | 5510 |
| 9 | Nominal current | mA | 350 |
| 10 | Max. output power | W | 7.23 |
| 11 | Max. efficiency | % | 77 |
| 12 | Back-EMF constant | mV/rpm | 3.11 |
Encoder Characteristics:
| 1 | Number of channels | 2 | 3 | ||||
| 2 | Counts per turn | cpt | 16, 32, 64, 128, 256, 512, 1024 | 16, 32, 64, 128, 256, 512, 1024 | |||
| 3 | Supply voltage | V | 5.0 (5.0) | 5.0 (5.0) | |||
| 4 | Max. speed | rpm | 30000 | 30000 | |||
| 5 | Phase shift | °e | 90±45 | 90±45 | |||
| 6 | Output signal | TTL | TTL | ||||
| 7 | Diameter | mm | 20 | 20 | |||
| 8 | Length | mm | 11 | 11 | |||
Lead wires length, Shaft length, Special coils, Gearheads, Encoder channels, Encoder counts per turn
Customized Motor Solutions CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now! |
| Series | Dimension (mm) | Voltage (V) | Termanal resistence (Ω) | Torque Constant (mNm/A) | Number of channels | Counts per turn (cpt) |
|---|---|---|---|---|---|---|
| 1043N5M | Φ10*43 | 12 | 28 | 9.73 | 2(3) | 16--64 |
| 1653N5M | Φ16*53 | 6 | 7.1 | 6.36 | 2(3) | 16--64 |
| 1654N5C | Φ16*54 | 12 | 13 | 7.43 | 2(3) | 16--64 |
| 228105C | Φ22*81 | 24 | 19.6 | 29.66 | 2(3) | 16--1024 |
Micro 12V 24v Gear Dc Brushed Motor With Encoder
