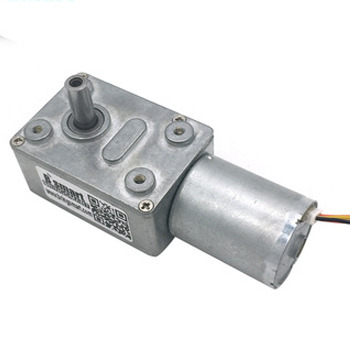

Name: Bringsmart JGY-2430 12 Volt DC Worm Gear Motor Totally Enclosed Brushless Self-lock Reversible Gearbox with Brake Mini Speed Measuring Motor
Brand: Bringsmart JGY-2430 12 Volt DC Worm Gear Motor Totally Enclosed Brushless Self-lock Reversible Gearbox with Brake Mini Speed Measuring Motor
SKU: JGY-2430
Price: 13.34 USD
Availability: InStock
Rating: 4.9 (126 reviews)

Bringsmart JGY-2430 12 Volt DC Worm Gear Motor Totally Enclosed Brushless Self-lock Reversible Gearbox with Brake Mini Speed Measuring Motor

1 Piece

MOQ

$13.34(1 - 29 Pieces) $12.31(30 - 119 Pieces) $11.43(120 - 599 Pieces) $10.01(>=600 Pieces)

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: JGY-2430

Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance

Type: GEAR MOTOR

Torque: 1-60kg.cm

Construction: Permanent Magnet

Commutation: Brushless

Protect Feature: Totally Enclosed

Speed(RPM): 2-160rpm

Continuous Current(A): 180-200ma

Efficiency: IE 1

Product Name: BringSmart JGY-2430 Brushless 12 Volt DC Worm Gear Motor

Certification: CCC, Ce, RoHS

Basic Infomation

Certification: CCC, ce, RoHS

Model Number: JGY-2430

Payment & Shipping Terms

Packaging Details: Inner Packaging: High Quality Bubble bags Outside packing: Stable Kraft Cartons

Product Description

JGY-2430 Brushless 12 Volt DC Worm Gear Motor Reduction Gearbox Engine Self-locking Reversible Worm Geared Motor

Brand name	BringSmart
Main Product	DC Motor, AC Motor, DC Linear Actuator View more----> Click here
Advantages	Rigorous Product Development, Excellent Production Team, Professional Sales Team, Good After-sales Service
Delivery Time	Within 15 days
OEM	Accepted

Product Description

Wiring Method:

Black wire: motor power -

Red line: motor power +

Yellow line: signal motor has 9 pulse signals

White line: duty cycle, pulse speed regulation 15-25khz

Orange line: positive and negative line (connected with the black line with negative pole reversal) default overcurrent protection 0.8A, over 0.8A current automatic protection, plugging protection, need to be re-energized before starting again.

Warning: do not connect the wrong power supply positive and negative pole, signal line do not connect power, the wrong connection will burn out
