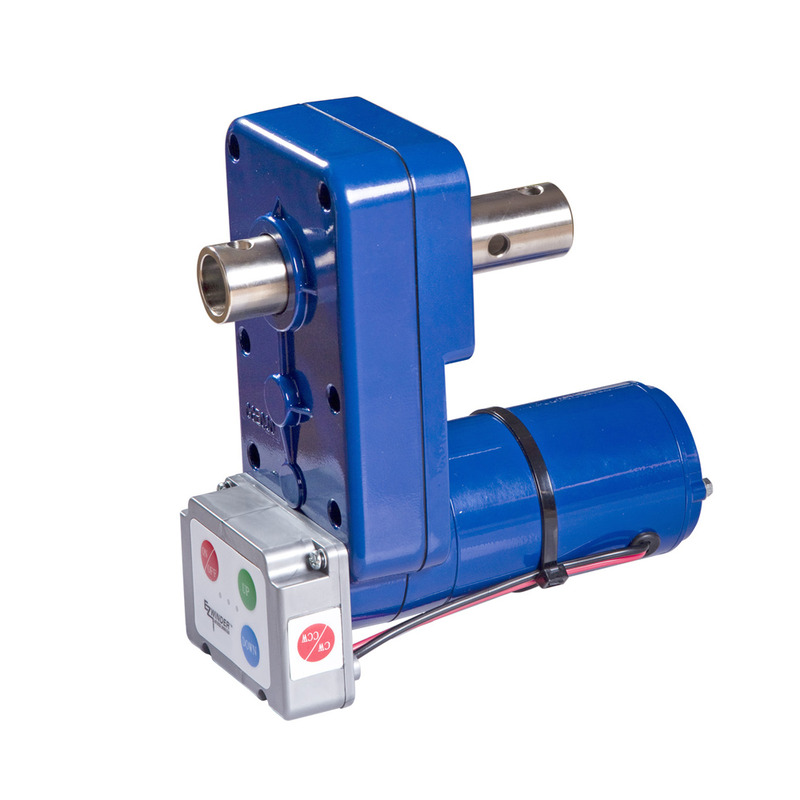

IP66 DZ84ZYC11 Trailer Landing DC Spur Gear Motors With Transaxle

1 Piece
MOQ
$888.00(>=1 Pieces)
Price
IP66 DZ84ZYC11 Trailer Landing DC Spur Gear Motors With Transaxle
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: One Year
Model Number: DZ84ZYC11
Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance, Trailer Landing
Type: GEAR MOTOR
Torque: Rated Torque 100N.m Max. 136N.m
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: IP66
Speed(RPM): 22RPM
Continuous Current(A): Rated Current 40A Max. 55A
Efficiency: Max. Efficiency > 55%
Product Name: DC Motors With Transaxle
Rated Voltage: 12V/24V DC
Color: Blue
Typical Applications: Trailer Landing Gear System
Diameter: 84mm
Noise: Low Noise Level
Motor Type: Brushed DC Motor
Power: 225W
Gear Ratio: 141:1, 100:1, 90:1, 70:1 Etc.
Max. Toque: Up To 150N.m
Certification: CCC, Ce, RoHS
Basic Infomation
Certification: CCC, ce, RoHS
Model Number: DZ84ZYC11
Payment & Shipping Terms
Packaging Details: cartons/pallets/containers
Supply Ability: 1000 Piece/Pieces per Week
Product Description
Product Description
DC Spur Gear Motors with Transaxle DZ84ZYC11 SPECS AND FEATURE:
Motor Size 84mm OD
Voltage 12V DC
Rated Torque 100N.m Max. 136N.m
Rated Current 40A Max. 55A
Rated Speed 22RPM
Work Duty 5 Mins.
Max. Efficiency > 55%
Gear Ratio 141/1
Waterproof Class IP66
With Build-in Controller
Application - Trailer Landing Gear
