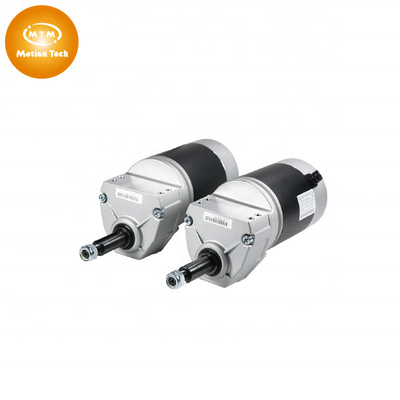

1:26 [MTM] Gearbox Brush Drip Proof DC Motor With Power Off Brake 24v 400 Watt 2800RPM CE Electric Wheelchair Motor

2 Pairs
MOQ
$412.00(2 - 99 Pairs) $402.00(>=100 Pairs)
Price
1:26 [MTM] Gearbox Brush Drip Proof DC Motor With Power Off Brake 24v 400 Watt 2800RPM CE Electric Wheelchair Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: Other
Model Number: ECC4T242840BLGBL, ECC4T242840BRGBR
Usage: Car, Electric Bicycle, Home Appliance, Power Wheelchair
Type: Gear Motor
Torque: 48 N-m
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Drip-proof
Speed(RPM): 2800rpm
Continuous Current(A): 3.5 A (no Load)
Efficiency: 73%
Gearbox: Parallel Reducer1:26
Electromagnetic Brake: 4N-m Without Lever
Rated Loading (for One Gearbox Motor): 380KG
Noise: 62dBA
Certification: Ce, RoHS
Basic Infomation
Certification: ce, RoHS
Model Number: ECC4T242840BLGBL, ECC4T242840BRGBR
Payment & Shipping Terms
Packaging Details: One pair of Motor with Gearbox and power off Brake in one carton.
Product Description
Product Overview
MTM brush DC motor includes Industrial ,gearbox and transaxle motor series .
The diameter of motors has 63,71,82,90,105 and 124. Gearbox ,transaxle and electromagnetic are optional .
Besides application for power wheelchair and scooter , application can be medical bed, medical car ,lifting solution , agriculture machine even aerial working vehicle ..etc. We suggest a suitable motor according to customers' demands of application and provide appropriate suggestion for customers.
Products Description
Simple but Tough
Motor: 24V / 400W
Gearbox Ratio: 1:26
Pole:4 P
IP44
Rated Output Speed: 2800±100 RPM
Rated Gearbox Motor torque: around 48N-m
Recommend loading: 380 KG each gearbox motor
Power-off Brake: 4 N-m without lever

Series Product SPEC
Diameter
124mm
IP Degree
IP44
Motor Output
350~1300W
150W
200W
350W
Gearbox Ratio
1:16.4/1:20.15/1:26/1:32/1:39/1:47
1:20 / 1:33
1:20 / 1:33
1:20 / 1:30 / 1:50
Speed Output(rpm)
53.2~347.6RPM
165 / 100
165 / 100
150 / 100 / 60
RPM
2500~5700 RPM
Rated Voltage
12V
24V
36V
48V
Electromagetic Brake
1,2,3,4,6,8,10 N-m with lever or without lever
None or 2N-m
2N-m
2N-m
Rated Loading
380KG (each gearbox motor)
Product Configuration
24V 400W 2600 RPM Brush DC motor
4 poles
Optional 4N.m brake without lever
characteristic curve
Product Paramenters
About Brush Series

Brush DC Motor


Standard DC63 products:20~100W Standard DC71 products:30~300W Standard DC82 products:80~450W Standard DC90 products:80~500W
Standard DCA5 products:200~900W Standard DCC4 products:200~1200W

Standard EC63 products:80~270W Standard EC71 products:80~300W
Standard EC82 products:150~500W
Standard EC90 products:120~600W
Standard EC92 products:250~600W
Standard EC94 products:250~500W Standard ECA0 products:500~900W Standard ECA5 products:500~950W Standard ECC4 products:350~1300W

Standard SC63 products:80~270W
Standard SC71 products:100~300W
Standard SC82 products:150~450W
Standard SC90 products:250~500W
Standard SC92 products:300~500W
Standard SC94 products:250~500W
Standard SCA5 products:500~950W
Standard SCC4 products:600~1300W
Applications
Brush motor is our root, Servo motor and brushless motor is our future.
The main product of MTM is for vehicles with low voltage DC power. If you are looking for a DC power servo motor, BLDC, brush motor or gearbox, MTM is your best choice.
