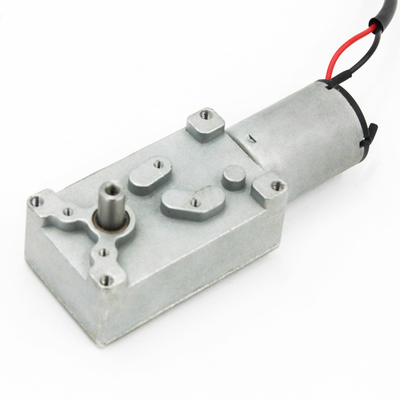

Name: dc 12v drip proof electric micro worm gear motor low rpm brush gear motor with gear box reducer
Brand: dc 12v drip proof electric micro worm gear motor low rpm brush gear motor with gear box reducer
SKU: SKM-B-03
Price: 5.84 USD
Availability: InStock
Rating: 4.7 (117 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Warranty: 3years

Model Number: SKM-B-03

Usage: Car, Home Appliance, SMART HOME

Type: Micro Motor

Torque: 4N.M-6N.M

Construction: Permanent Magnet

Commutation: Brush

Protect Feature: Drip-proof

Speed(RPM): 2 ~30mm/s(Option

Continuous Current(A): <2A

Efficiency: IE 1

Product Name: Motor With Gear Box

Noise: 45DB

Direction Of Rotation: CCW Reversible

Certification: Ce, RoHS

Basic Infomation

Certification: ce, RoHS

Model Number: SKM-B-03

Payment & Shipping Terms

Supply Ability: 50000 Piece/Pieces per Month

Product Description

Please consult for details and subject to consultation

Some parameters can be customized for you

Product Model	JSSZ01
Input	DC12V
Revolving Speed	2.0-3.0r/min
Trigger Voltage	<=DC1.2-1.5V
Current At No Load	<=25-40mA
Rated Current	1500mA
Locked-rotor current	<=2500mA
Rated Torque	>=8N.M
Stalling Torque	>=10N.M
Output Axle	3 types:200-202
Direction of rotation	Inversion (CCW)
Voice	the decibel value<=45DB when leave the motor 300mm
Abnormal Noise	Sound uniformly when running,and no abnormal noise
Axial clearance	<=0.30mm
Vibration	No much vibration
Standard	CE/RoHS
