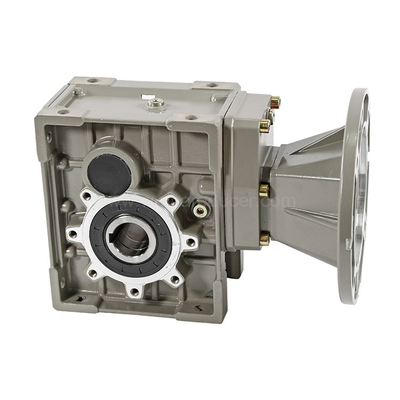

WKM hypoid gear reducer |
|
|
Model |
WKM50,WKM63,WKM75,WKM90 |
|
Ratio |
B:7.5,10,12.5,15,20,25,30,40,50,60 C: 50,60,75,100,125,150,200,250,300 |
|
Transmission Stage |
B: 2 stages C: 3 stages |
|
Output torque |
Up to 500NM |
|
Motor power |
0.12~4KW,with flange:B5 or B14 |
|
Housing material |
Aluminum alloy |
|
Output shaft |
material: 40Cr Hardness level: 242-286HB |
|
Helical gear |
Material:20CrMnTi Hardness level: 58-62HRC Precision level:6 grade |
|
Transmission efficiency |
B:92%-94% C:90%-92% |
|
Oil seal brand |
SKF |
|
Bearing |
C&U |
|
Lubricant |
Mineral oil or sythetic oil |
1. How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
2. What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
3. What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
4. Doyou sell motors?
We have stable motor suppliers who have been coperating with us for a long-time. They can provide motors
with high quality.
