Modern Linear Actuator Double Worm Gear Motor Automatic Swing Gate Operator

Name: Modern Linear Actuator Double Worm Gear Motor Automatic Swing Gate Operator
Brand: Modern Linear Actuator Double Worm Gear Motor Automatic Swing Gate Operator
SKU: CSSGO-02
Price: 230.00 USD
Availability: InStock
Rating: 4.9 (157 reviews)

2 Units

MOQ

$230.00(2 - 29 Units) $200.00(30 - 149 Units) $190.00(>=150 Units)

Price

Modern Linear Actuator Double Worm Gear Motor Automatic Swing Gate Operator

Features Gallery Product Description Request A Quote

Features

Specifications

Warranty: 1 Year

After-sale Service: Online Technical Support

Project Solution Capability: NONE

Application: School&villa

Design Style: Modern

Model Number: CSSGO-02

Type: DC 24V Dual Arms Kit

Name: CSSGO-02 Swing Gate Opener

Motor: 24 V DC

Power Supply: 110V/60Hz (or 220V/50Hz)

Absorbeb Power: 28W

Current: 2A

Max.Weight Of Each Gate: 250 Kgs

Max.Width Of Each Gate: 2.5 M

Open/closing Running Time: Programmable (from 0 To 99 Seconds)

Motor Speed: 4500RPM/min

Temperature From: -20 To 50 Degree

Basic Infomation

Model Number: CSSGO-02

Payment & Shipping Terms

Packaging Details: Carton Box

Product Description

Electric Gate Opener / Swing Gate Opener Steel Auto Swing Gate For Residence Use

Product Description

1)This model has with the limit switch, back-up battery interface, solar panel&battery interface

Swing gate opener / gate motor CSSGO-02 is DC12V/24V motor, dual arms for maximum 250KG 2.5 m gate.

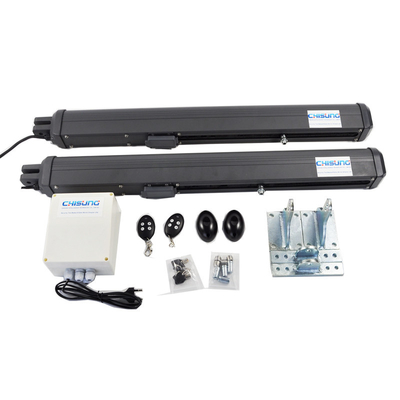

2)Each kit includes :

2 motor + 1 control panel(board+box) + 2 remote control +1 user manual and mounting brackets.

(This model has with the limit switch, back-up battery interface, solar panel&battery interface)

Technical specifications
Technical specifications
Power supply	230VAC/50Hz
Electric motor	24V
Absorbeb power	28W
Current	2A
Motor speed	4500RPM/min
Thrust	400N
Travel	12s
Protection Class	IP45
Temperature	From -20 to 50 degree
Max weight	250kg
Max width	2.5m

3)Safe and reliable home automation system

Durable, stylish European design and functionality, metal parts are galvanized steel, powder coated outer body part to prevent corrosion and rust .

2.Electronic protection

Anti-extrusion protection is achieved by control of the CPU directly controls the driving force to open the door in emergency manual operation is available , to protect the internal and external damaged .

3.Easy installation, no need much space

Strict production testing to ensure that each machine only needs to be installed on the door , you can simply adjust the ease of use , due to the compact shape ,can be installed in narrow space of the occasion , can be used on 2.5m wide and weights 250kg .

4.Limit switch and release device

L2 type gate opener has limit stops (see below) can be used to adjust the door open or closed the door in place, and it is equipped with a release switch (see below), allowing in emergency situations , the door can be opened and closed manually .

4)Functions& Features

1.Soft start and soft stop

2. Emergency release key in case of power failure

3. Adjustable opening/closing interval between master and slave gate

4. Stop/Reverse in case of obstruction during gate opening/closing.

5. Optional photocell protection

6. Built -in adjustable auto-close (0-99 seconds)

7. Digital display indicates the running situation and setting menu

8. Reliable limit switch(electromagnetism) for easy adjustment

9. Built-in max motor running time( MRT) adjustable for multiple safety protection

10.Easy to handle and low maintenance

11.24V low safety voltage with solar panel as backup battery

12.Guarantee: normally one year after the shipping, but our after sales service last for lifelong time.

13.Packing: tawny carton or colorful carton depend on your order item, or customized carton with your own logo (we have amount requirement on customized items)

Packaging & Shipping

1. Each kit includes :

2 motor + 1 control panel(board+box) + 2 remote control +1 user manual and mounting brackets.

(This model has with the limit switch, back-up battery interface, solar panel&battery interface)

2. DHL/Fedex/ EMS/TNT ,and other shipping way is ok .

If you need other kinds swing gate opener welcome to contact the seller for morer detail or the priclist :
