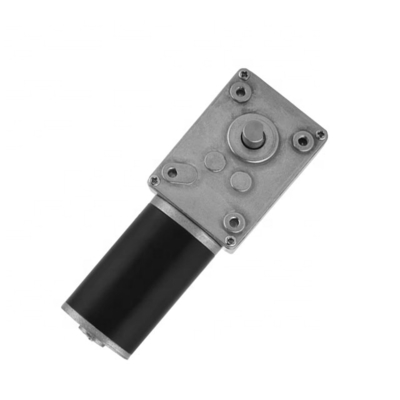

12V 24V High Torque Explosion Proof Brush Reducer Worm Reducer Motor Permanent Magnet DC Gear Motor

3.0 Pieces
MOQ
$15.60(3 - 99 pieces) $14.20(100 - 499 pieces) $13.00(>=500 pieces)
Price
12V 24V High Torque Explosion Proof Brush Reducer Worm Reducer Motor Permanent Magnet DC Gear Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3months-1year
Model Number: STF-5840-31ZY
Usage: Car, Home Appliance, Rotating Light
Type: GEAR MOTOR
Torque: 17kg.cm-70kg.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Explosion-proof
Speed(RPM): 20rpm-1000rpm
Continuous Current(A): 2A
Efficiency: IE 2
Diameter: 31MM
Gearbox Size: 40mm*58mm
Reduction Ratio: 17~505
Shaft Length: Customized
Weight: 435g
Basic Infomation
Model Number: STF-5840-31ZY
Payment & Shipping Terms
Packaging Details: Standard export carton packing.
Supply Ability: 1000000 Piece/Pieces per Month
Product Description
Product Description


MOTDEL

Rated
voltage
NO LOAD
LOAD
STAII
SPEED
CURRET
SPEED
CURRET
TORQUE
OUTPUT
TORQUE
CURRET
V
rpm
mA
rpm
mA
gf.cm
w
gf.cm
mA
5840-31ZY
24
80
120
56
0.8
20
4.3
70
3.1
Datasheet of gear motor:
Specification
Rated Voltage
12-24V
Rotation Direction
CW/CCW
Operating Conditions
-10℃~60℃≤60%RH
speed
16-470rpm
Rating Torque/Nm
17-70kg
Motor Type
Permanent magnet high torque DC motor
Technical Data
bespoke
Can be customized according to your requirements:
All parameters include voltage, current, power, torque, mounting dimensions, shaft shape and dimensions,
The motor is composed of DC brush motor and reduction box

The products are widely used in:
Oil valve, automatic office machine, shredder, automatic curtain, stage lighting, vending machine, medical equipment, handicrafts,
elevator door machine, gear box, advertising light box, shoeshine machine......

Company Profile
Shenzhen Shengtufa Motor Co., Ltd. is a professional research and development, production, sales of micro motor enterprises, our products include: hollow cup motor, iron core motor, brushless motor, vibration motor, reducer motor, etc.At present, our factory is located in Shenzhen, covering an area of more than 1000 square meters, with efficient and professional r & D team, the most advanced production and testing equipment, high-quality products, so that our company has been rapid development since its establishment.The products are widely used in nearly 100 different applications such as mobile phones, beauty instruments, 3D printers, robots, electric toothbrushes, household appliances, power tools, precision instruments, on-board electronic equipment, tattoo machines, etc.In order to meet the growing market demand, Shengtufa has been expanding its business scope to provide customers with better products and services.And customer-oriented sales and service system, so that high efficiency, high quality, low cost, scale to meet customer requirements, help customers to succeed.We take science and technology as the foundation, take the quality as the foundation, take the science and technology as the enterprise development motive force.Our responsibility to our products, customers, employees, suppliers, environment and society motivates us to innovate and pursue higher efficiency and quality
Packing & Delivery
Standard export packing
FAQ
Q: Are these motor's parameter from the above list can be modified ?
A: Yes, motor's parameter can be customized. We can modify the rotation diection, motor's working voltage, lead wire length, lead
wire matrial, rated speed, torque etc, and motor's shaft dimension can be modified too. We are pleased to make those modification,
the more details you provide, the more fluent our cooperation will be.

Q: How to order?
A:Please send us your purchase order by Email or call me, then make quotation according to your order, after confirm, we can make
you Performa invoice under your request.

Q: Sometimes I don't know the exact required parameter, how should I choose a suitable model ?
A: We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will be
this model used for ? And what does the working condition look like (duty cycles and load status)? And how long is the motor's
expected lifetime ? etc. Then we can a make full assessment according to that.

Q:Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make
our evaluation to see if we can arrange or not.

Q:Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples, but normally sample is not for free (sample fee is charged varying from different places). And the
sample making time depends on different types, for some small motor types( 3-10days is possible), while some gearbox motor should
be about 25days more or less. Additional, there will be about extra 2-3 days for the delivery time, and the shipping cost is not
for free too.
