Home /Products/Worm Geared Motor/60kg-cm DC 24v 3rpm Drip Proof Worm Gear Motor Reversible High Torque Speed ​​Reduce Electric Turbine Gearbox Motor 8mm Shaft

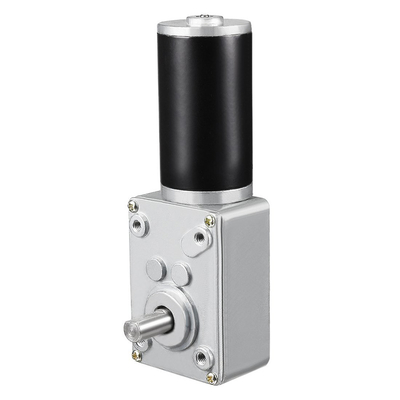

60kg-cm DC 24v 3rpm Drip Proof Worm Gear Motor Reversible High Torque Speed ​​Reduce Electric Turbine Gearbox Motor 8mm Shaft

10 Pieces
MOQ
$8.50(10 - 99 Pieces) $8.00(100 - 2999 Pieces) $6.50(>=3000 Pieces)
Price
60kg-cm DC 24v 3rpm Drip Proof Worm Gear Motor Reversible High Torque Speed ​​Reduce Electric Turbine Gearbox Motor 8mm Shaft
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3years
Model Number: SKM-D-3R-05
Usage: Car, Home Appliance, SMART HOME
Type: GEAR MOTOR
Torque: 40-60kg.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Drip-proof
Speed(RPM): 2-3rpm -No Load
Continuous Current(A): <40mA
Efficiency: IE 1
Direction Of Rotation: CCW
Voice: <45db
Axial Clearance: <0.30mm
Certification: Ce, RoHS
Basic Infomation
Certification: ce, RoHS
Model Number: SKM-D-3R-05
Payment & Shipping Terms
Supply Ability: 50000 Piece/Pieces per Month
Product Description
Main Product
DC Rrducer Motor, Linear actautor, Controller, View more
Advantage
Professional R&D team,advanced design concept,strict quality control and considerate after service
OEM
Accepted
Delivery Time
Within 15 days
Product Description
We offer Customized Speed service.

5V No Load Speed: 2rpm/min 2.5rpm/min 2.7rpm/min 3rpm/min 8rpm/min 10rpm/min 20rpm/min

12V No Load Speed: 2rpm/min 2.5rpm/min 2.7rpm/min 3rpm/min 8rpm/min 10rpm/min 20rpm/min

24V No Load Speed: 2rpm/min 2.5rpm/min 2.7rpm/min 3rpm/min 8rpm/min 10rpm/min 20rpm/min
Product Paramenters

Type
Voltage
No Load
Stall
Reducer
Trigger
Rated
Speed
Current
Torque
Current
Ratio
SKM-01
< 1.5V
5V
2.0rpm
<25mA
40kg.cm
<500mA
1500
SKM-01
< 1.5V
12V
2.0rpm
<25mA
40kg.cm
<500mA
1500
SKM-02
< 1.3V
5V
2.5rpm
<30mA
50kg.cm
<650mA
1440
SKM-02
< 1.3V
12V
2.5rpm
<30mA
50kg.cm
<650mA
1440
SKM-03
< 1.2V
5V
2.7rpm
<30mA
55kg.cm
<750mA
1630
SKM-03
< 1.2V
12V
2.7rpm
<30mA
55kg.cm
<750mA
1630
SKM-04
< 1.2V
5V
3.0rpm
<40mA
60kg.cm
<1200mA
1666
SKM-04
< 1.2V
12V
3.0rpm
<40mA
60kg.cm
<1200mA
1666
SKM-B-01
< 1.5V
<400mA
3.0rpm
90mA
100kg.cm
<2500mA
1000
Drawing
Product Show
About us
FAQ
Q1: What is the material of the gear?
A1: The motor gears are made of metal. If you need other materials, you can contact us.

Q2: How to change rotation direction?
A2: Please change wiring polarity to change rotation direction.

Q3: How to change speed?
A3: You can buy our below speed controller, to change speed from 0-10rpm.

Q4: What do "self locking" mean?
A4: It is the feature of this motor, when power off, this motor also has lock torque, can not easy to move by other force. It can be used for some special purpose. Such as Anti-theft sliding doors.

Q5: What happens when a voltage of 18V is connected to a 12V motor or an 18V motor?
A5: The 12V motor connection 18V voltage will be broken, and the 24V motor connection 18V voltage will affect his speed and torque, and will not even run.

If you have any question and problem in using, please contact us first. We will try our best to resolve the problem.
