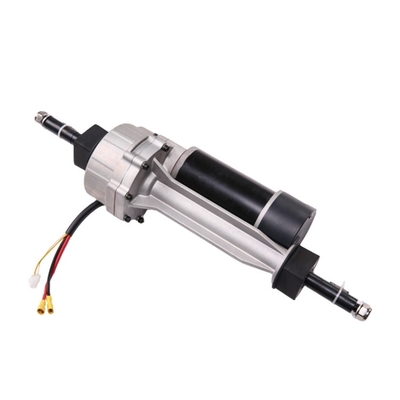

400w 24v DC motor used for electric golf trolley cargo trolley or carts.
Our reasonable designs and experienced engineers will always provide satisfactory solutions with quick responses to customers.
LD02B Transaxles Seriers
| Model No. | LD02-355-400 | LD02-355-450 | LD02-355-600 | LD02-355-700 |
| Rated voltage | DC 24V | DC 24V | DC 24V | DC 24V |
| Rated power | 400W | 450W | 600W | 700W |
| Gear Ratio | 1:19.75 | 1:19.75 | 1:19.75 | 1:19.75 |
| Free output RPM | 160RPM | 160RPM | 220RPM | 240RPM |
| Max output torque | 31NM | 35NM | 31NM | 35NM |
| Motor Efficiency | 73% | 75% | 77% | 78% |
| Motor Diameter | 97mm | 97mm | 97mm | 97mm |
| Brake torque | 6Nm | 6Nm | 6Nm | 6Nm |
| Noise(db)(A) | ≤68 | ≤68 | ≤68 | ≤68 |
FAQ:
1)What kind of motor is this? Can it be 800W?
Answer: This is a brush/brushless DC motor.Yes,We can make an electric drive axle of 180W to 1000W.
2) Could you offer me 24V transaxles,controller and matching tires as a prototype sample,even though it isn't reach your MOQ?
Answer: Yes, we accept prototype sample order ,And when samples are made according to customer's requirements,sample fee will be charged.
3) Can the controllers be driven by a 0-5V(or in that range) for throttle control?
Answer: Yes,0-5V can work.
4) Are the motors reversible?
Answer: Yes, it can run/rotate in 2 directions: Forward and Backward.
5) I want to know ratio1:25 can change to 1:20?
Answer: Yes,speed ratio can be adjusted.
6) May i know the load capacity?
Answer: 250w:200kg ; 500w-800w:300kg
7)Could u offer OEM/ODM service?
Answer: Yes boss, we are support OEM/ODM.
