Features

Specifications

Gearing Arrangement: Helical

Output Torque: 0.19-115KGM

Rated Power: 60-4.0KW

Input Speed: 1500/1720RPM

Output Speed: 1 TO 1700rpm

Model Number: TCG

Gear Reducer: Helical

Voltage: 1/3 Phase

Herb: 50/60HZ

Protection: IP54 IP44

Seal: Totally Enclosed

Frame: Aluminum Or Metric Housign

Starting: Direct Start

Stardard: IEC Gearmotor

Gear Ration: 3 To 1800

Brake: Available

Basic Infomation

Model Number: TCG

Payment & Shipping Terms

Packaging Details: Export standard packing for gear reducer; inside cartonbox; outsie wooden box

Supply Ability: 999 Set/Sets per Day

Product Description

IEC AC motor with helical gearbox

1 TCG Small gear for gearmotor

♦The material of rotor is 40Cr,quench to HRC50-55 after rough rolling ,two times hard cutting,the gear precision can arrive ISO Class6-7

♦ The material of shaft gear is 20CrMnTi, quench to HRC58-61 after rough rolling ,two times hrd cutting,the gear precision an arrive ISO class 6-7

♦ TCG plate gear is 40Cr ,quench to HRC48-51 after roughing ,grind,the precision can arrive ISO class-7

2.0TCG gearmotor advantages

♥Economical and compact

♥ High presure -resistance,good insulation ,insulation class F,Can work in different kinds of ambient

♥ Long life adopting abrasion-sresistance lead free,non-asbestos friction plate ,making sure the long life

♥ selective of assembling bole diameter and easy assembling

♥ Multiple assembling way meets different customers

3.0Dimension of TCG Speed reduction gear motor

4.0TCHM Gearhead

5.0Picture of some gearmotor

6.0Our TCG factory

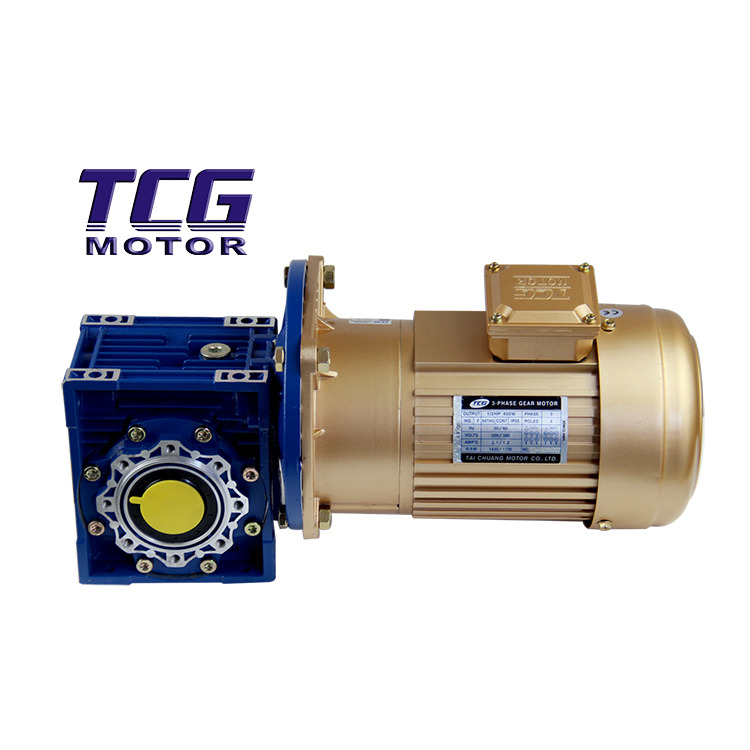

3HP 30RPM Hollow Shaft Worm Gear Motor NMRV TCG Series
