Home /Products/Helical Geared Motor/40w ac speed drip proof reversible motor with speed controller

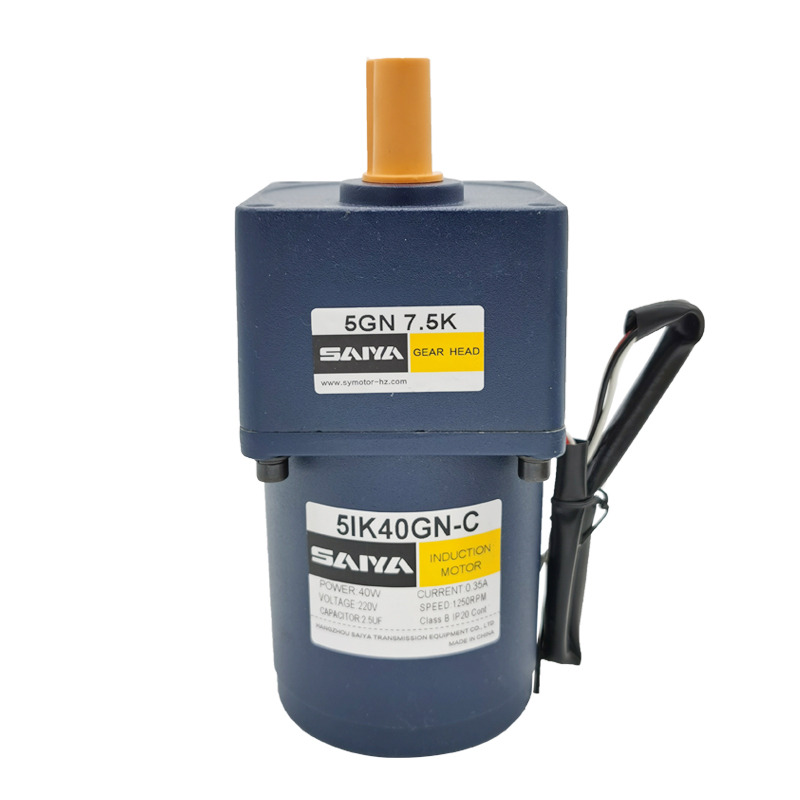

40w ac speed drip proof reversible motor with speed controller

1 unit
MOQ
$43.00(1 - 49 units) $42.00(50 - 99 units) $41.00(>=100 units)
Price
40w ac speed drip proof reversible motor with speed controller
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1year
Model Number: 5RK40GN-CF/5GN7.5K
Type: Induction Motor
Frequency: 50/60Hz, 50Hz, 60Hz
Phase: Single-phase
Protect Feature: Drip-proof
AC Voltage: 115/120 V,220V/230V
Efficiency: IE 1
Rated Voltage: 100-230V
Speed: 2900RPM 1400RPM
Application: Packing Machine,automatic System, Parking System
Gearbox Shaft Diameter: 12mm
Item Name: 40w Reversible Ac Induction Motor With Speed Controller
Gearbox Diameter: 90MM
Output Speed After Gearbox:: 2 To 550RPM
Gearbox Ratio: 3-200
Gearbox Material: Matel
Basic Infomation
Model Number: 5RK40GN-CF/5GN7.5K
Payment & Shipping Terms
Packaging Details: 1. B3B Corrugated Standard Export Carton or Styrofoam box or Blister Tray 2. As customer's requested for 60w reversible ac induction motor with speed controller
Supply Ability: 80000 Box/Boxes per Month for 60w reversible ac induction motor with speed controller
Product Description
Product Overview
60w reversible ac induction motor with speed controller 5IK60GU-CF/5GU7.5B
1. It's only the typical data.
The gear motor can be customized if you have some special requirements.
such as the gear ratio, torque and shaft dimension.

The motor price is also for reference only and it will be decided by the
reduction ratio and body's length.

2. If you have any questions, pls do not feel hesitate to ask us.
You can send us messages, emails or give us a call.
FEATURES AT A GLANCE
Features:
1. Dimensions of device: 90mm
2. Power: 40W
3. Voltage:220V
4. Shape of motor shaft:
1) GN: Genaral Helical Gear
2) A1: Milling Keyway
3) GU: Reinforced Helical Gear
4) A: Flat type
5.Gear type:
1) GN: General Helical Gear
2) GU: Reinforced Helical Gear
6.Ratio:7.5:1
All the specs above can be customized.
PRODUCT SPECIFICATIONS
No
Item
Data
1
Power
40W
2
Voltage
single phase 220v
3
Ratio
7.5
4
Size
90mm
5
Torque
2.9N.m
