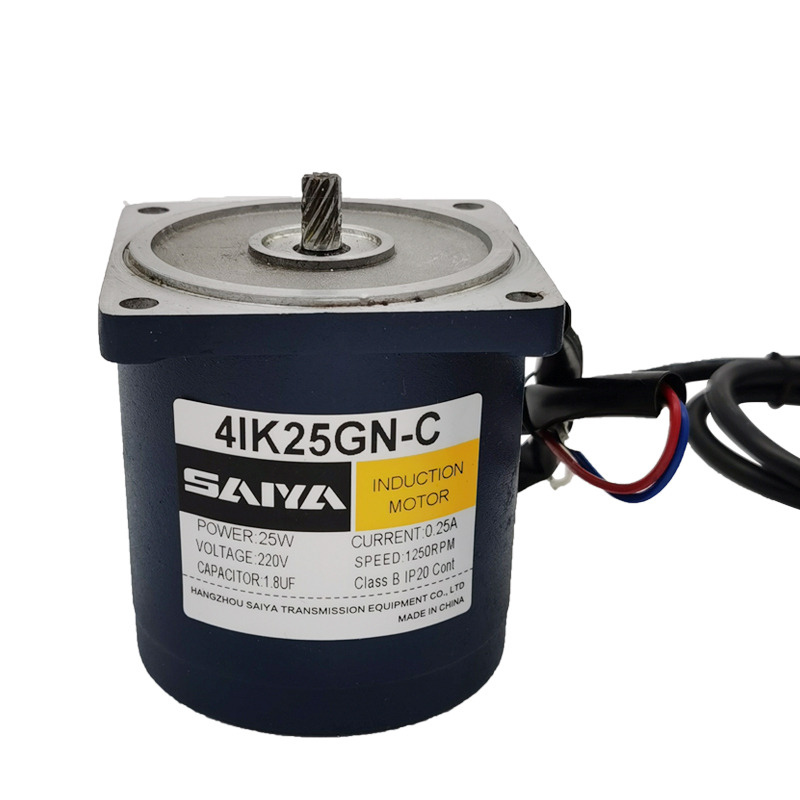

Name: 80mm AC 25W Drip Proof Speed Adjustable Motor For Wrapping Machinery
Brand: 80mm AC 25W Drip Proof Speed Adjustable Motor For Wrapping Machinery
SKU: 4IK25RGN-C / 4GN15K
Price: 57.00 USD
Availability: InStock
Rating: 4.6 (158 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Warranty: 1year

Model Number: 4IK25RGN-C / 4GN15K

Type: Induction Motor

Frequency: 50/60Hz, 50Hz, 60Hz

Phase: Single-phase

Protect Feature: Drip-proof

AC Voltage: 115/120 V

Efficiency: IE 1

Rated Voltage: 100-230V

Speed: 2900RPM 1400RPM

Application: Packing Machine

Gearbox Shaft Diameter: 12mm

Item Name: 25w Reversible Ac Induction Motor With Speed Controller

Gearbox Diameter: 80MM

Output Speed After Gearbox:: 2 To 550RPM

Gearbox Ratio: 3-200

Gearbox Material: Matel

Basic Infomation

Model Number: 4IK25RGN-C / 4GN15K

Payment & Shipping Terms

Packaging Details: 1. B3B Corrugated Standard Export Carton or Styrofoam box or Blister Tray 2. As customer's requested for 60w reversible ac induction motor with speed controller

Supply Ability: 100000 Box/Boxes per Month for 60w reversible ac induction motor with speed controller

Product Description

Product Overview

25 w reversible ac induction motor with speed controller 4IK25RGN-C / 4GN7.5K

1. It's only the typical data.
The gear motor can be customized if you have some special requirements.
such as the gear ratio, torque and shaft dimension.

The motor price is also for reference only and it will be decided by the
reduction ratio and body's length.

2. If you have any questions, pls do not feel hesitate to ask us.
You can send us messages, emails or give us a call.

FEATURES AT A GLANCE

Features:

1. Dimensions of device: 90mm
2. Power: 25W
3. Voltage:220V
4. Shape of motor shaft:

1) GN: Genaral Helical Gear
2) A1: Milling Keyway
3) GU: Reinforced Helical Gear
4) A: Flat type
5.Gear type:

1) GN: General Helical Gear
2) GU: Reinforced Helical Gear

6.Ratio:7.5:1

All the specs above can be customized.

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power	25W	10w,15w,40w,60w,90w,120w,140w,180w,200w can be customized
2	Voltage	single phase 220v	single phase or three phase, 110v,220v, 380v,400v can be customized
3	Ratio	7.5	ratio from 3 to 750 can be customized
4	Size	80mm	according to the power and torque
5	Torque	1.2N.m	change according to the model and ratio
