Features

Specifications

Warranty: 3 Years

Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Construction WorksÂ , Energy & Mining, Food & Beverage Shops, Txt Shaft Mounted Gearbox, Belt Conveyor System

Weight (KG): 36 KG

Customized Support: OEM, ODM, OBM

Gearing Arrangement: Helical

Output Torque: -

Input Speed: -

Output Speed: -

Input Power: 0.1KW-3.7KW

Gear Ratio: 3-1800

Shaft Arrangement: Coaxial / Inline

Gear Arrangement: Helical Gears

Stage: 2, 3

Mounting: Foot Mounted, Flange Mounted

Basic Infomation

Payment & Shipping Terms

Packaging Details: wooden Case per pc + many pcs in wooden case

Supply Ability: 2000 Set/Sets per Month

Product Description

Products Description

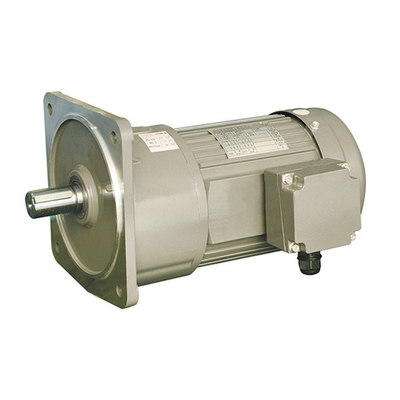

GH/GV Series Coaxial Geared Motors

Components:
1. Housing:
Frame Size 18-28, Aluminum alloy ADC12
Frame Size 32-50, Cast iron HT200
2. Gears: Helical Gears, 2 or 3 stage
3. Input Configurations:
GH/GV Series - Compact Motor, 1 Phase / 3 Phase, Optional Brake
GHM/GVM Series - IEC Flange
GHD/GVD Series - Solid Shaft Input
4. Output Configurations:
Solid Shaft Output
Features:
1. Compact structure
2. Wide range of gear ratio, ratio 250-1800 available by 2 frame sizes combination
3. Different input options available, flexible mounting ways and positions
4. 3 phase or 1 phase motor available, optional brake, aluminum alloy, TEFC IP54. IP55 aluminum alloy terminal box, dustproof and waterproof

Installation:
GH Series - Foot Mounted
GV Series - Flange Mounted

Models			Output Shaft Dia.	Power(kW)	Ratio
GH18	GV18	18	0.1KW, 0.2KW, 0.4KW, 0.75KW, 1.5KW, 2.2KW, 3.7KW 1/8HP, 1/4HP, 1/2HP, 1HP, 2HP, 3HP, 5HP	3-200 250-1800
GH22	GV22	22
GH28	GV28	28
GH32	GV32	32
GH40	GV40	40
GH50	GV50	50
